BUILD 19/30: Word Counting Calendar Drawing Blocks II

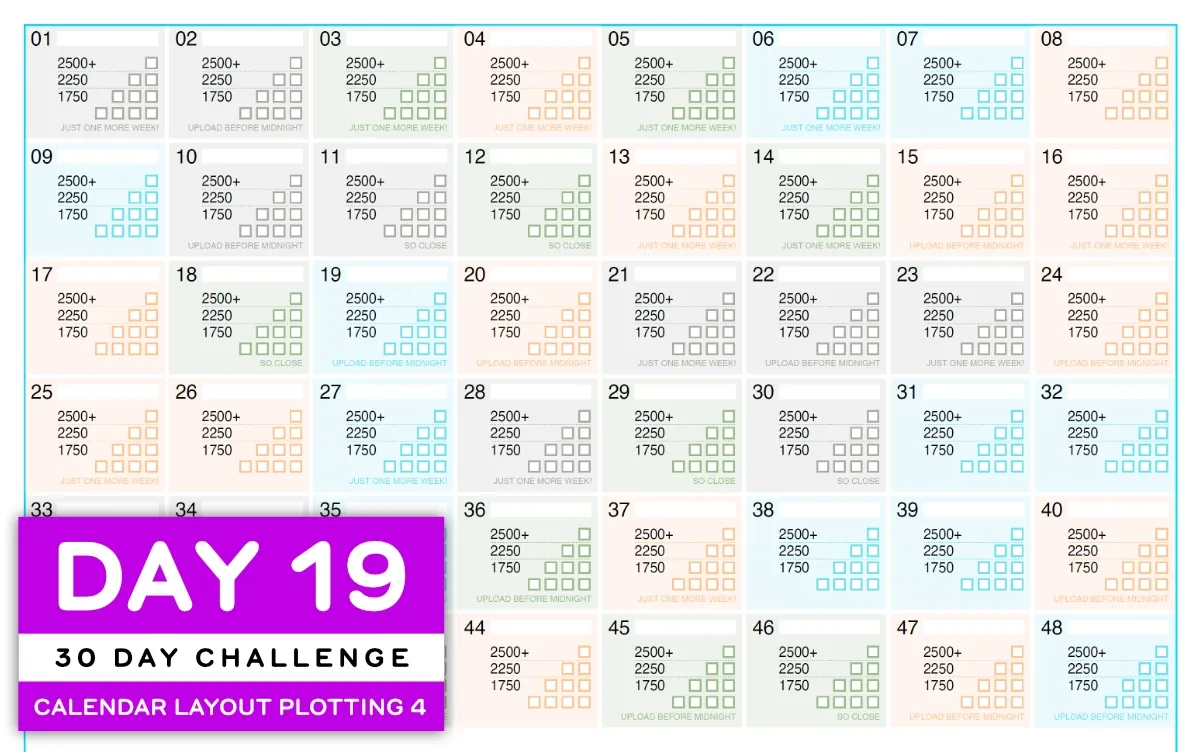

⊕ show captionAbout the Title Picture: Drawing Calendar Days with the parameterized cell renderer into a PDF document. The color is picked randomly. Next step is to draw a legimate calendar based on actual dates.

I felt a lot better on Sunday, so I made up for lost time by working on the PDF generator for Word Counting Calendars! The cell drawing uses a constructed grid based on key subjects, which means that I can change the base grid size (used for drawing the blocks) and the labels (both font and size) and the cell will redraw correctly.

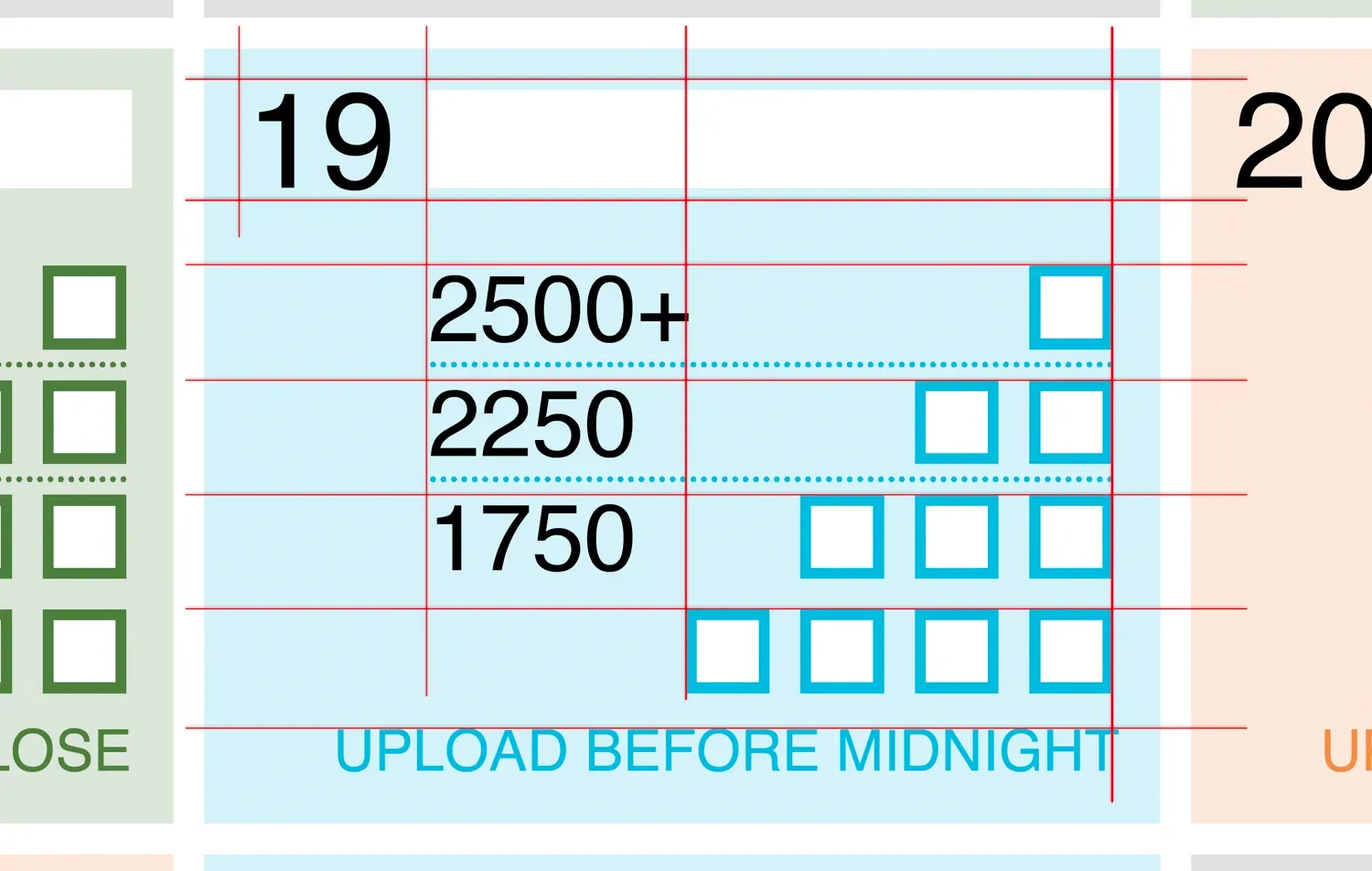

⊕ show captionFigure 1. Closeup of a Calendar Day Cell, showing the rendering guidelines derived from from key elements like the DAY, the LABELS, and the PYRAMID.

The rendering order starts in the upper left, inset by a MARGIN. The DAY is drawn and the width is used to index to the next column, which is the alignment point for the LABELS and DIVIDER LINES before the PYRAMID is drawn. The size of the pyramid itself is determined by the BLOCK DIMENSION, which specifies the size of each individual BLOCK as well as the strokes, gaps, and proportional vertical spaces across the cell. Each cell also is drawn using a base color specified in a color table, using various opacity levels to achieve the unified color look.

Here's the parameterization that determines the cell's layout:

/// COLORS ///
const clr_default = [
  cmyk(0.7423, 0.2818, 1, 0.1399),
  cmyk(0.74, 0.0, 0.1, 0),
  cmyk(0.57, 0.49, 0.59, 0.23),
  cmyk(0.0, 0.55, 0.83, 0)
];
const clr_cell = R(clr_default);

/// PARAMETERS ///
const DIM = 8; // 8 pt is unit base
const DSIZE = 13; // fontsize of DAY
const LSIZE = 9; // fontsize of LABELS
const SSIZE = 5.5; // fontsize of SPECIAL

/// DERIVED PARAMETERS ///
const MRGN = DIM / 2;
const SWI = DIM / 8; // stroke width
const INS = SWI / 2; // stroke inset
const GAP = SWI * 3; // gap between boxes

The actual drawing code uses these values for spacing elements. There's a separate bit of code that precalculates the critical dimensions of elements:

// CALCULATE DIMENSIONS OF DYNAMIC ELEMENTS
const dayString = String(DAY).padStart(2, '0');
const DWIDTH = font.widthOfTextAtSize(dayString, DSIZE);
const DHEIGHT = font.heightAtSize(DSIZE, { descender: false });
const LABELS = ['2500+', '2250', '1750'];
let LWIDTH = 0; // text labels
for (let label of LABELS) {
  const tw = font.widthOfTextAtSize(label, LSIZE);
  if (tw > LWIDTH) LWIDTH = tw;
}
const LHEIGHT = font.heightAtSize(LSIZE, { descender: false });
let PWIDTH = (PSIZE - 1) * (DIM + GAP) + DIM; // pyramid
const PHEIGHT = PWIDTH;
const CELLW = MRGN + DWIDTH + GAP + LWIDTH + PWIDTH + MRGN;
const CELLH = MRGN + DHEIGHT + DIM + PHEIGHT + DIM + MRGN;
const SHEIGHT = font.heightAtSize(SSIZE, { descender: false });
const SWIDTH = font.widthOfTextAtSize(SPECIAL, SSIZE);

It's a bit fragile and janky as this is prototype code; I'll be cleaning it up later once I figure out the best way to write these kind of layout-based calculations more cleanly as components that have some kind of layout manager specific to my form design.

It was nice to spend several hours over the weekend getting this to work. I started with just this:

⊕ show captionFigure 2. Closeup of previous Calendar Day Cell progress, showing the rendering guidelines derived from from key elements like the DAY, the LABELS, and the PYRAMID.

Seems like good progress to me!
